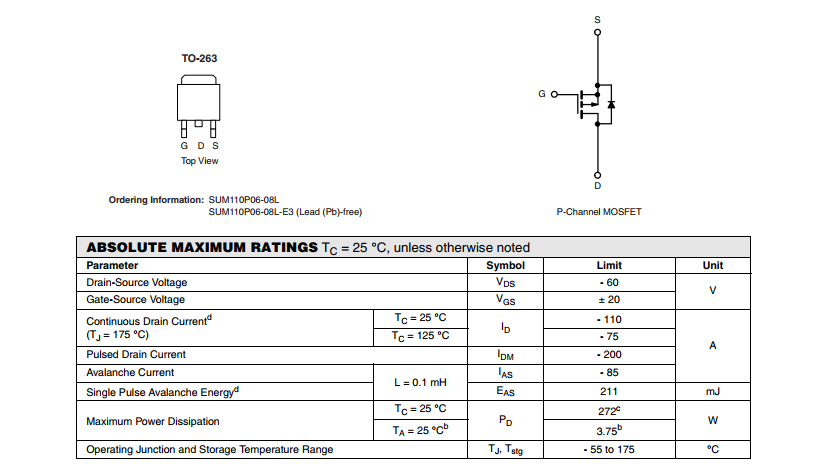

Package : TO-263-3

Transistor polarity: P-Channel

Number of channels: 1 Channel

Vds-Drain-source breakdown voltage: 60 V

Id-continuous drain current: 110 A

Rds On-Drain-source on-resistance: 8 mOhms

Vgs-gate-source voltage:-20 V, + 20 V

Vgs th-gate-source threshold voltage: 1 V

Qg-gate charge: 160 nC

Minimum operating temperature:-55 C

Maximum operating temperature: + 175 C

Pd-power dissipation: 272 W

Channel mode: Enhancement

Trade name: TrenchFET

Package: MouseReel

Trademark: Vishay Semiconductors

Configuration: Single

Fall time: 300 ns

Forward transconductance-minimum: 20 S

Product type: MOSFET

Rise time: 190 ns

Factory Packing Quantity: 800
