FEATURES

• Sillicon planar Zener diodes

• Voltage range includes 43 breakdown

voltages from 3.6 V to 200 V with ± 2 %

for BZD27B-M Series

• Low profile surface-mount package

• Zener and surge current specification

• Low leakage current

• Excellent stability

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

• Meets JESD 201 class 2 whisker test

• ESD capability according to AEC-Q101:

human body model: > 8 kV

machine model: > 800 V

• Wave and reflow solderable

• AEC-Q101 qualified available

• Base P/N-M3 - halogen-free, RoHS-compliant, and

commercial grade

• Base P/N-HM3 - halogen-free, RoHS-compliant, and

AEC-Q101 qualified (available on request)

• Compatible to SOD-123W package case outline or

SOD-123F and SOD-123FL

• Material categorization: for definitions of compliance

please see

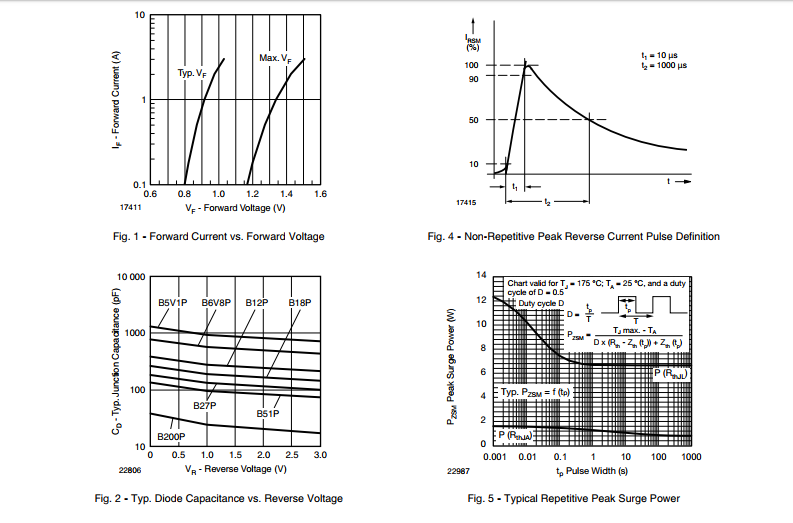

TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
