onsemi

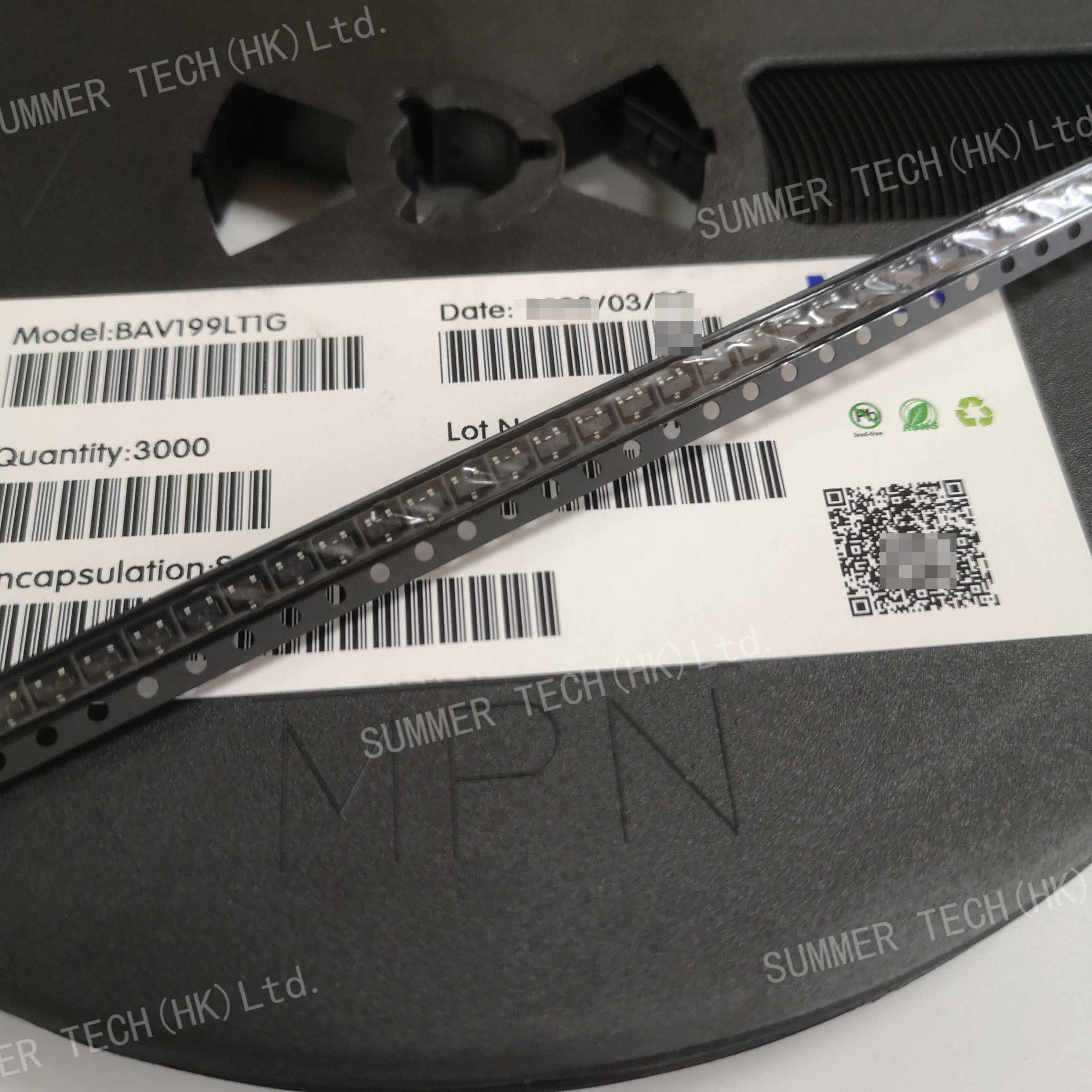

BAV199LT1G

BAV199LT1G

Maximum surge current: 2 A

If-forward current: 715 mA

Configuration: Dual

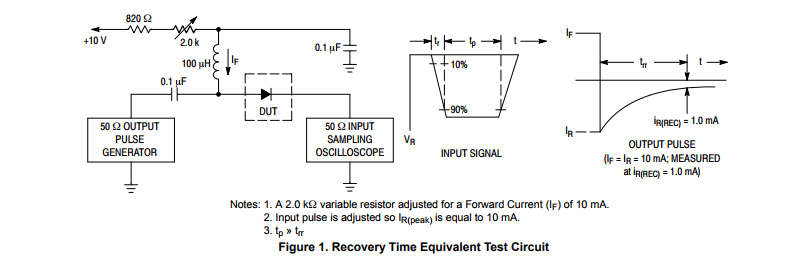

Recovery time: 3 us

Vf-Forward voltage: 1.25 V

Minimum operating temperature:-65 C

Maximum working temperature: + 150 C

Height: 0.94 mm

Length: 2.9 mm

Description

Features

• Low Leakage Current Applications

• Medium Speed Switching Times

• S Prefix for Automotive and Other Applications Requiring Unique

Site and Control Change Requirements; AEC−Q101 Qualified and

PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant
