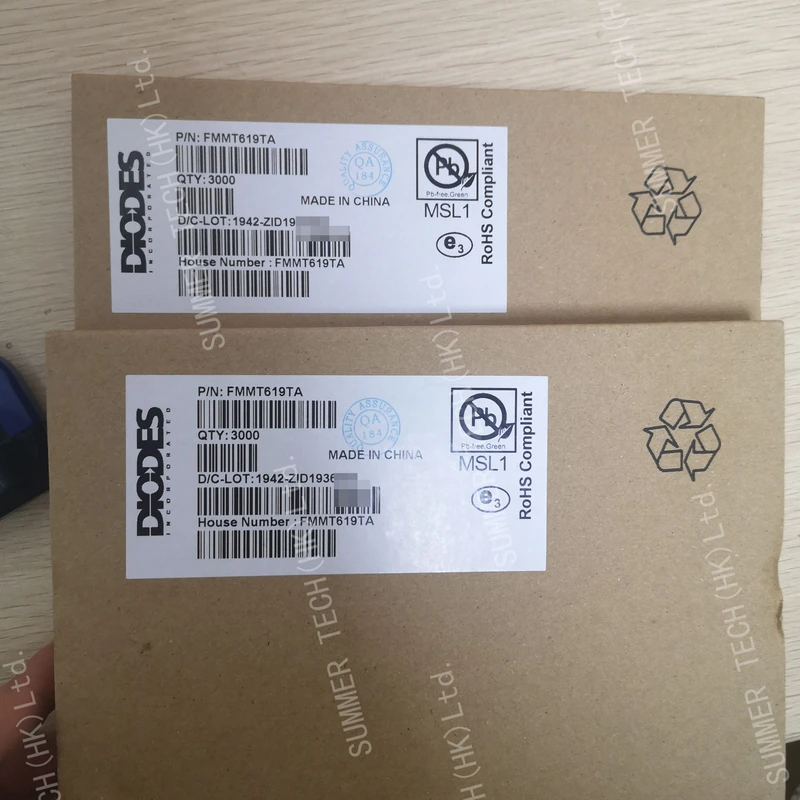

FMMT619TA

Collector-emitter maximum voltage VCEO: 50 V

Collector-base voltage VCBO: 50 V

Emitter-base voltage VEBO: 7 V

Collector-emitter saturation voltage: 150 mV

Maximum DC collector current: 2 A

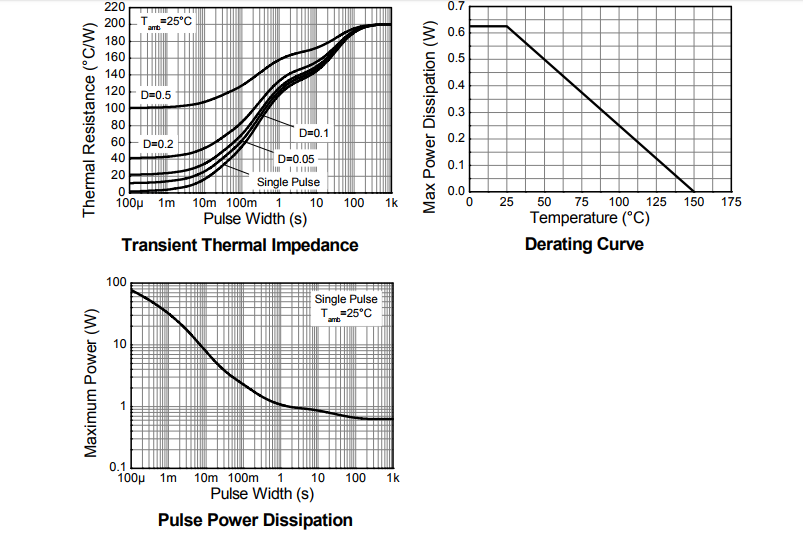

Pd-power dissipation: 625 mW

Gain bandwidth product fT: 165 MHz

Minimum operating temperature:-55 C

Maximum working temperature: + 150 C

Features

• BVCEO > 50V

• IC = 2A Continuous Collector Current

• 625mW power dissipation

• Low Saturation Voltage VCE(sat) < 200mV @ 1A

• RCE(SAT) = 68mΩ for a low equivalent on-resistance

• hFE characterised up to 6A for high current gain hold-up

• Complementary PNP type: FMMT720

• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

• PPAP capable (Note 4)

Mechanical Data

• Case: SOT23

• Case Material: molded plastic, “Green” molding compound

• UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

• Weight 0.008 grams (approximate)

Applications

• MOSFET Gate Driving

• DC-DC / DC-AC Converters

• Regulator

• LED driver

• Motor Control

DIODES
