FMMT451TA

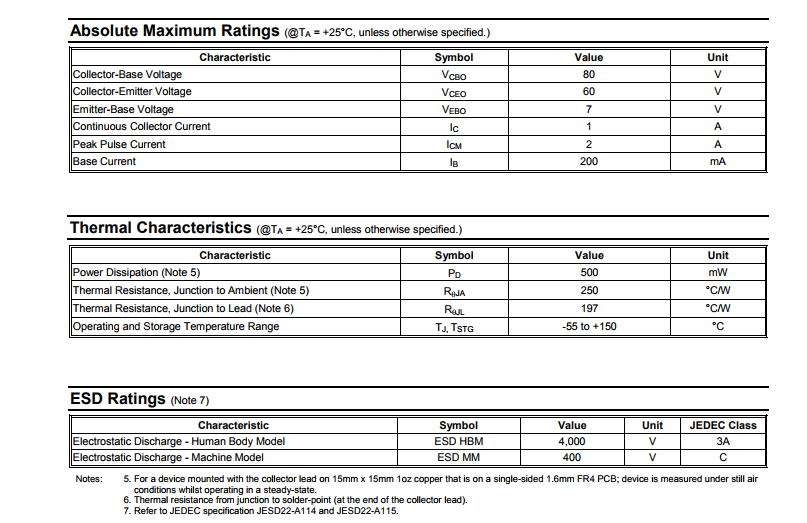

Collector-emitter maximum voltage VCEO: 60 V

Collector-base voltage VCBO: 80 V

Emitter-base voltage VEBO: 5 V

Collector-emitter saturation voltage: 350 mV

Maximum DC collector current: 1 A

Pd-power dissipation: 500 mW

Gain bandwidth product fT: 150 MHz

Minimum operating temperature:-55 C

Maximum working temperature: + 150 C

Continuous collector current: 1 A

Height: 1.1 mm

Length: 3 mm

Features

• BVCEO > 60V

• IC = 1A Continuous Collector Current

• ICM = 2A Peak Pulse Current

• 500mW Power Dissipation

• Complementary PNP Type: FMMT551

• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

• Halogen and Antimony Free. “Green” Device (Note 3)

• Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case: SOT23

• Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Finish – Matte Tin Plated Leads. Solderable per

MIL-STD-202, Method 208

• Weight 0.008 grams (approximate)

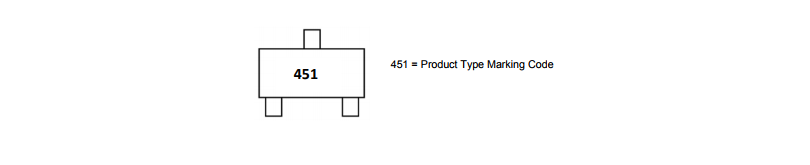

Marking Information

DIODES
